- Features
- Highlights
- Quality control
- Warranty
Important quality control

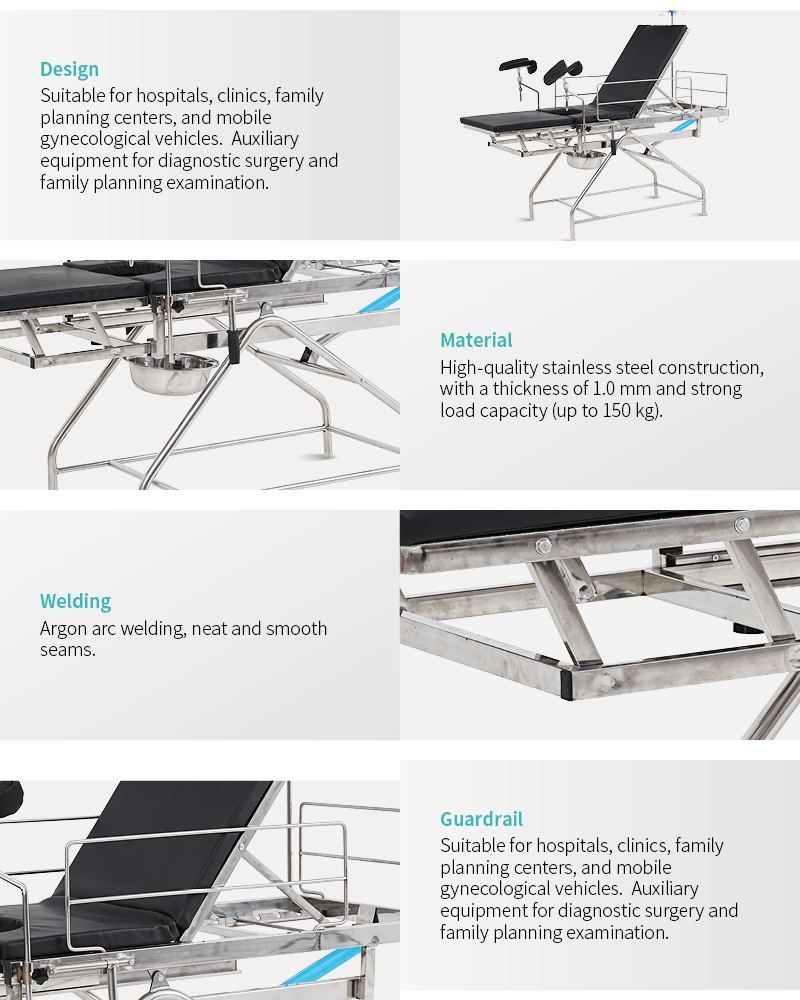

* High-quality stainless steel construction, with a thickness of 1.0 mm and strong load capacity (up to 150 kg). Bed leg size φ32*1.1mm; bed frame size 25*50*1.5mm; bed surface size 20*30*1.0mm.
* Argon arc welding, neat and smooth seams.
* Three sides equipped with detachable stainless steel guardrails, making it easy for patients to get on and off the bed. The guardrail height is 250mm±10mm.
* Backrest controlled by a gear rack, can be adjusted to raise at an angle of 0-63.5°±5°, facilitating patient sitting.
* U-shaped cutout for easy doctor access.
* Foldable sliding leg board has a knob limit design for effortless sliding and compact storage.
* Stable triangular base design facilitates adjusting the bed's horizontal tilt angles for various positions.
* Lever is made of steel, offering high support strength, durability, safety, and noiseless operation for smooth usage.
* Gear rack for backrest height adjustment, assisting pregnant women in sitting up and relieving pressure during childbirth.
* Manual hand lever for trendelenburg and reversed trendelenburg of the bed.
Technical parameters
* High-quality stainless steel construction, with a thickness of 1.0 mm and strong load capacity (up to 150 kg). Bed leg size φ32*1.1mm; bed frame size 25*50*1.5mm; bed surface size 20*30*1.0mm.
* Argon arc welding, neat and smooth seams.
* Three sides equipped with detachable stainless steel guardrails, making it easy for patients to get on and off the bed. The guardrail height is 250mm±10mm.
* Backrest controlled by a gear rack, can be adjusted to raise at an angle of 0-63.5°±5°, facilitating patient sitting.
* U-shaped cutout for easy doctor access.
* Foldable sliding leg board has a knob limit design for effortless sliding and compact storage.
* Stable triangular base design facilitates adjusting the bed's horizontal tilt angles for various positions.
* Lever is made of steel, offering high support strength, durability, safety, and noiseless operation for smooth usage.
* Gear rack for backrest height adjustment, assisting pregnant women in sitting up and relieving pressure during childbirth.
* Manual hand lever for trendelenburg and reversed trendelenburg of the bed.
Technical parameters
| Overall dimension(mm) | 1830mm*625mm*800mm(with mattress)±10mm |
| Backrest lifting | 0-63.5°±5° |
| Trendelenburg | 0-18°±2° |
| Reversed Trendelenburg | 0-18°±2° |
| Packaging dimensions | 71*30*135cm |
| Gross weight | 47kg |
| Net weight | 45kg |
