- Features
- Highlights
- Quality control
- Warranty
Important quality control
* The Table is suitable For thoracic and abdominal surgery, brain surgery, ENT, obstetrics and gynecology, urology, orthopedics and other surgical operations.
* The material is made of 304 stainless steel, The table top is made of high-strength synthetic board, which can transmit X-rays. The front and back translation of the table can reach 320mm. It can perform C-arm inspection on all parts of the patient during the operation without moving the patient.
* With table top 180°rotation function.
* Equipped with a built-in emergency power supply, the emergency power supply can be automatically charged, and the emergency power supply can automatically jump to the working state when the network power supply is cut off.
Technical parameters
Technical configuration
* The Table is suitable For thoracic and abdominal surgery, brain surgery, ENT, obstetrics and gynecology, urology, orthopedics and other surgical operations.
* The material is made of 304 stainless steel, The table top is made of high-strength synthetic board, which can transmit X-rays. The front and back translation of the table can reach 320mm. It can perform C-arm inspection on all parts of the patient during the operation without moving the patient.
* With table top 180°rotation function.
* Equipped with a built-in emergency power supply, the emergency power supply can be automatically charged, and the emergency power supply can automatically jump to the working state when the network power supply is cut off.
Technical parameters
| External size (LxWxH) |
2100x520x(690-940)mm |
| Reverse trendelenburg | 0-25° |
| Trendelenburg | 0-25° |
| Lateral tilt left/right | 0-20° |
| Head plate up/down |
0°-90°/0°-90° |
| Back plate up/down |
0°-80°/0°-20° |
| Leg plate up/down | 0°-15°/0°-90° |
|
Leg plate outwards |
0°-90° |
| Kidney bridge elevation | 0-120mm |
| Horizontal sliding | 0-320mm |
|
Bed rotation |
0°-180° |
|
Patient Weight Capacity |
220KG |
Technical configuration
| Bed frame | 1pc |
| Mattress | 1set |
| Anesthesia screen frame | 1pc |

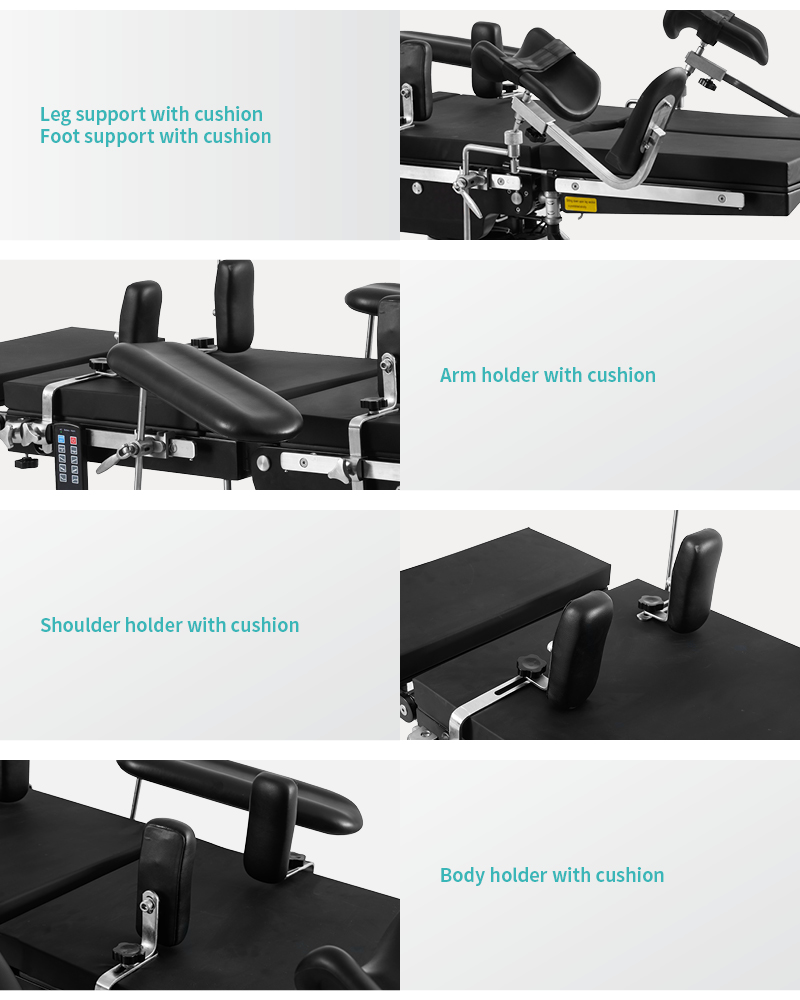

| Shoulder holder with cushion | 2pcs |
| Arm holder with cushion | 2pcs |
| Leg support with cushion | 2pcs |
| Foot support with cushion | 2pcs |
| Hand controller | 1pc |
| Kidney bridge handle | 1pc |
|
Battery back-up |
1pc |
|
Translucent table top for X-rays |
1set |
|
Central brakes system |
1set |
