- Features
- Highlights
- Quality control
- Warranty
Important quality control

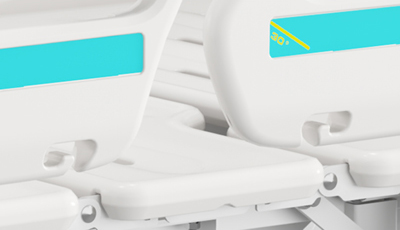

* PP side rail extra height
* PP bed platform with integrated mattress retainer
* PP bed ends with safe lock with Φ65 bumper wheels
Options
* Utility Shelf
* Trapeze Bracket/Pole
Technical parameters
Technical configuration
* PP side rail extra height
* PP bed platform with integrated mattress retainer
* PP bed ends with safe lock with Φ65 bumper wheels
Options
* Utility Shelf
* Trapeze Bracket/Pole
Technical parameters
| External size (LxWxH) | 2130x1025x475-725mm |
| Mattress platform | 1925x900mm |
| Safe working load | 250kg |
| Back-rest adjustment | 0-70°(±10°) |
| Knee-rest adjustment | 0-38°(±10°) |
| Trendelenburg | 0-12° |
| Reverse trendelenburg | 0-12° |
Technical configuration
| Manual Crank | 4pcs |
| 5'' Covered Castors | 4pcs |
| PP side rail extra height | 1set |
| PP bed ends with safe lock with Φ65 bumper wheels | 1set |
| PP bed platform with integrated mattress retainer | 1set |
| IV pole 4 hooks | 1set |
| IV pole prevision | 4pcs |
| Drainage hook | 2pcs |
