/ Products / Surgical / Medical pendant
![<?=$ecms_gr[title]?>](/d/file/p/2025/05-14/f7d7e529246fb0599b5d084320c0451e.jpg)
![<?=$ecms_gr[title]?>](/d/file/p/2025/05-14/43d19d9a77ccff8f3a4f389b185c6c2e.jpg)
![<?=$ecms_gr[title]?>](/d/file/p/2025/05-14/db86369409c12601df8b58fcf9ff61f5.jpg)
![<?=$ecms_gr[title]?>](/d/file/p/2025/05-14/ebefb9f7b9b9315a72084a815da211eb.jpg)
- Features
- Highlights
- Quality control
- Warranty
Technical parameters
Technical configuration
Optional
| Operating power supply | AC220V, 50Hz |
| Input power | 6KVA |
| Horizontal box length | 1000mm |
| Hanging arm Rotation angle | 340° |
| Box Rotation angle | 340° |
| Hanging tower load-bearing capacity | 180kg |
| Instrument platform load-bearing capacity | 80kg |
| Height adjustment | 450mm |
| Protection class | IP20 |
| Fire protection class | UL94-V1 |
Technical configuration
| Functional columns | 1 pc |
| Rotary hanging arm | 2 pcs |
| Damping brake system | 1 set |

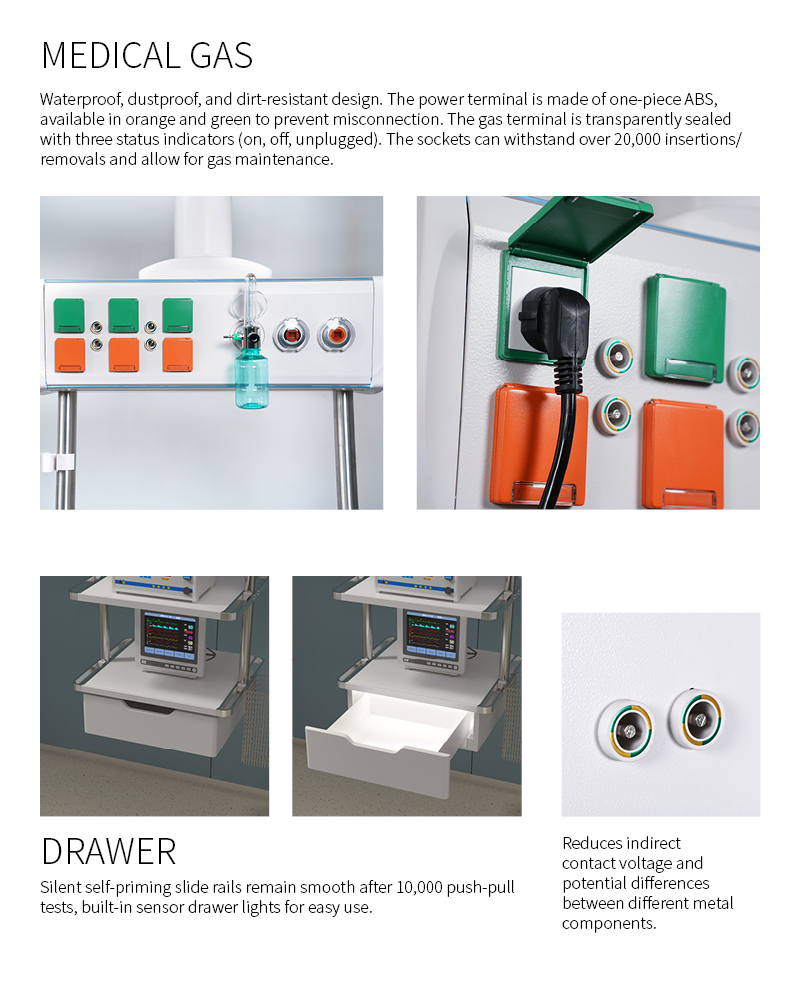

| Medical gas (O2) | 1 pc |
| Medical gas (Suction) | 1 pc |
| Medical gas (AIR) | 1 pc |
| Instrument platform | 2 layers |
| Power outlets (220V/10A) | 6 pcs |
| Equipotential terminals | 4 pcs |
| Drawers | 1 pc |
| Extension arm | 1 set |
| Infusion stand | 1 set |
| Infusion pump stand | 1 pc |
| Boom hub | 1 pc |
Optional
1. Basket – stainless steel basket1.
2. Medical gas outlets: British standard, American standard, German standard, French standard, Japanese standard, etc.
3. Different standards for medical gas outlets and adapters: British standard, French standard, German standard, Diss, Ohmeda, Chemetron, etc.
4. Inhaler – various oxygen inhalers (disposable, simple, external, etc.)
5. Negative pressure regulating valve
6. Waste liquid collection device (external)
7. Suction tube box;
8. Drawer divider boxes;
9. Lighting systems;
10. Computer keyboard drawer;
11. Monitor stands + monitors;
12. Flashlight + flashlight placement box;
13. Stethoscope + stethoscope holder.
