- Features
- Highlights
- Quality control
- Warranty
Important Quality Control
* All 45 # steel structure chair frame, strong bearing capacity, bearing up to 135kg.
* Encircling chair frame design, give patients a sense of security. Ultralow chair height desin. The lowest chair height is only 390mm, makes it easy for children or the old to climb up and down.
Back rest can adjust -5° ~ 80°.
* 8 cm thickened cushion with PU cover, filled with highly elastic foam and are perfect for all body shapes, keeping patients comfortable and relaxed during the long term treatment.
* ABS injection molding backrest, solid and reliable.
* Compared with traditional headrest, cambered headrest holds the head to prevent it from moving from side to side. The headrest adjusts freely for optimal patient positioning.
* Double side rotatable armrest: the right armrest is rotatable up to 180°, just push it outward, easy to operate, provide patients with a sense of security, convenient for patients to climb up and down.
* The main box can be flexibly rotated≤60° during treating.
* Simple pipeline layout, convenient maintenance; Imported water pipes, gas pipes through the national biocompatibility test, burst pressure test, safe and reliable; The valve body is made of copper and stainless steel, rust resistant and durable.
* Precision die-casting aluminum alloy, solid and reliable. Balance arm rotated by 320°. Moving range: 440 mm; the instrument arm rotated 90°; light arm rotated by 300°, Moving range: ≧560mm.
* Two-color LED dental light brings a lot to your practice. A clearer view of tooth surfaces. Reduced eyestrain. Less fatigue.With manual and induction switch, meet any conditions of use, provides a light intensity up to 30000 lux, color temperature 5000K, rotate by 300°.
* The new Deluxe touchpad, rotatable instrument table, easily rotate around ≧ 160°. Five choices for delivery of your handpieces and accessories. Table top can hold surgical utensils, with removable and washable protective pads. Stainless steel instrument plate is added on the side for larger capacity and more convenient.
* The high quality viewing light is stable, improves the treatment efficiency of doctors.The color temperature>6500K and the brightness>2000cd/m2.
* Glass spittoon, beautiful and generous, rotation angle ≧ 90°. Keeping patients comfortable during treatment.
* Rotatable assistant console with four instrument positions, can be placed strong and weak saliva suction; smart touch control panel technology, high-end atmosphere.. Everything you need is easy to position and comfortably within reach.
Function

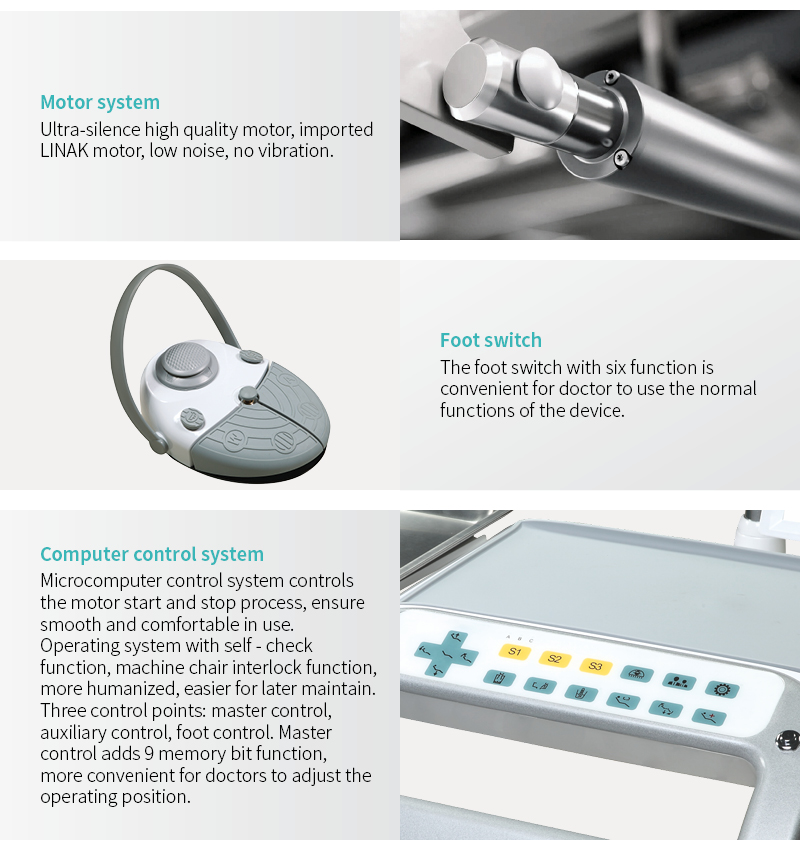

* Microcomputer control system controls the motor start and stop process, ensure smooth and comfortable in use.Operating system with self - check function, machine chair interlock function, more humanized, easier for later maintain.Three control points: master control, auxiliary control, foot control. Master control adds 9 memory bit function, more convenient for doctors to adjust the operating position.
* Ultra-silence high quality motor, imported LINAK motor, low noise, no vibration.
* The foot switch with six function is convenient for doctor to use the normal functions of the device.
Technical parameters
* All 45 # steel structure chair frame, strong bearing capacity, bearing up to 135kg.
* Encircling chair frame design, give patients a sense of security. Ultralow chair height desin. The lowest chair height is only 390mm, makes it easy for children or the old to climb up and down.
Back rest can adjust -5° ~ 80°.
* 8 cm thickened cushion with PU cover, filled with highly elastic foam and are perfect for all body shapes, keeping patients comfortable and relaxed during the long term treatment.
* ABS injection molding backrest, solid and reliable.
* Compared with traditional headrest, cambered headrest holds the head to prevent it from moving from side to side. The headrest adjusts freely for optimal patient positioning.
* Double side rotatable armrest: the right armrest is rotatable up to 180°, just push it outward, easy to operate, provide patients with a sense of security, convenient for patients to climb up and down.
* The main box can be flexibly rotated≤60° during treating.
* Simple pipeline layout, convenient maintenance; Imported water pipes, gas pipes through the national biocompatibility test, burst pressure test, safe and reliable; The valve body is made of copper and stainless steel, rust resistant and durable.
* Precision die-casting aluminum alloy, solid and reliable. Balance arm rotated by 320°. Moving range: 440 mm; the instrument arm rotated 90°; light arm rotated by 300°, Moving range: ≧560mm.
* Two-color LED dental light brings a lot to your practice. A clearer view of tooth surfaces. Reduced eyestrain. Less fatigue.With manual and induction switch, meet any conditions of use, provides a light intensity up to 30000 lux, color temperature 5000K, rotate by 300°.
* The new Deluxe touchpad, rotatable instrument table, easily rotate around ≧ 160°. Five choices for delivery of your handpieces and accessories. Table top can hold surgical utensils, with removable and washable protective pads. Stainless steel instrument plate is added on the side for larger capacity and more convenient.
* The high quality viewing light is stable, improves the treatment efficiency of doctors.The color temperature>6500K and the brightness>2000cd/m2.
* Glass spittoon, beautiful and generous, rotation angle ≧ 90°. Keeping patients comfortable during treatment.
* Rotatable assistant console with four instrument positions, can be placed strong and weak saliva suction; smart touch control panel technology, high-end atmosphere.. Everything you need is easy to position and comfortably within reach.
Function
* Microcomputer control system controls the motor start and stop process, ensure smooth and comfortable in use.Operating system with self - check function, machine chair interlock function, more humanized, easier for later maintain.Three control points: master control, auxiliary control, foot control. Master control adds 9 memory bit function, more convenient for doctors to adjust the operating position.
* Ultra-silence high quality motor, imported LINAK motor, low noise, no vibration.
* The foot switch with six function is convenient for doctor to use the normal functions of the device.
Technical parameters
| power supply | 220V 50Hz |
| input power | 1100VA |
| Gas pressure | 0.6MPa-0.8MPa /6-8.0bar |
| Water pressure | 0.2-0.4 MPa / 2.0-4.0 bar |
| Heater | 24V、80VA |
| External Size | 1870 mm×850 mm×2170 mm |
| Height adjustment | 390 mm～710 mm |
| Backrest adjustment | ‘-5°～80° |
| Balance arm rotating angle | 320° |
| Moving up/down range | 440 mm |
| LInstrument arm angle | 90° |
| Light arm angle | 300° |
| Moving range up and down | ≧560 mm |
| Handpieces tube flow | hen the water pressure is 0.22MPa, the tube flow≧30L/ min |
| Handpieces revolving speed | ≧320000r/min |
| Strong suction | When the air pressure is 400kPa, the vacuum degree ≧ 25kPa |
| Weak suction | When the water pressure is 200kPa, the vacuum >10kPa |
| LED film viewer | Induction switch, illumination: 10000-300001uX, color temperature 5000K |
| Package size | L1450mm*W1030mm*H1250mm |
| Weight | Gross weight: 225KG; Net weight: 190KG |
