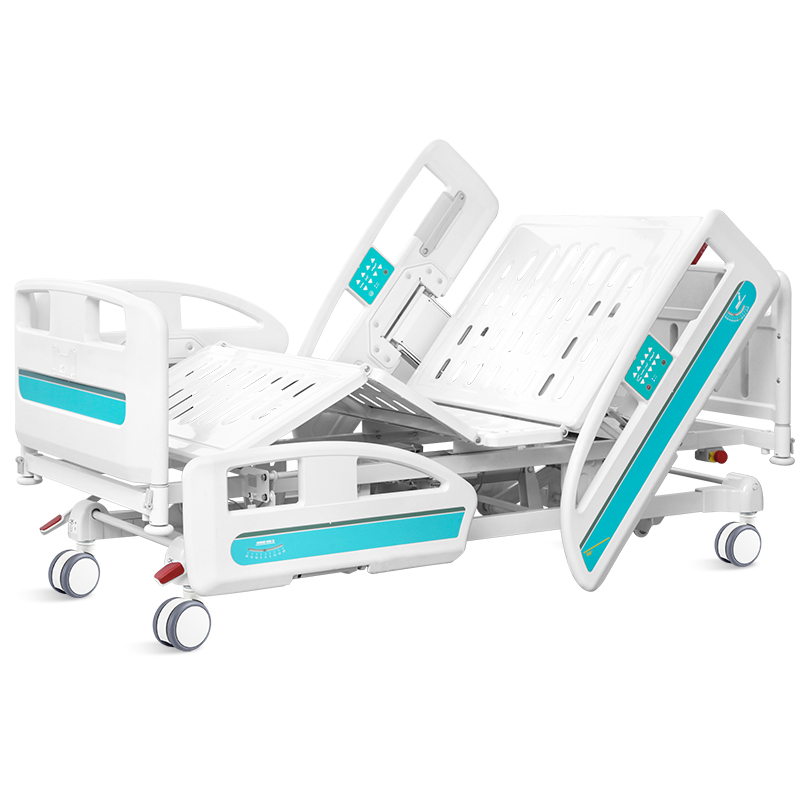

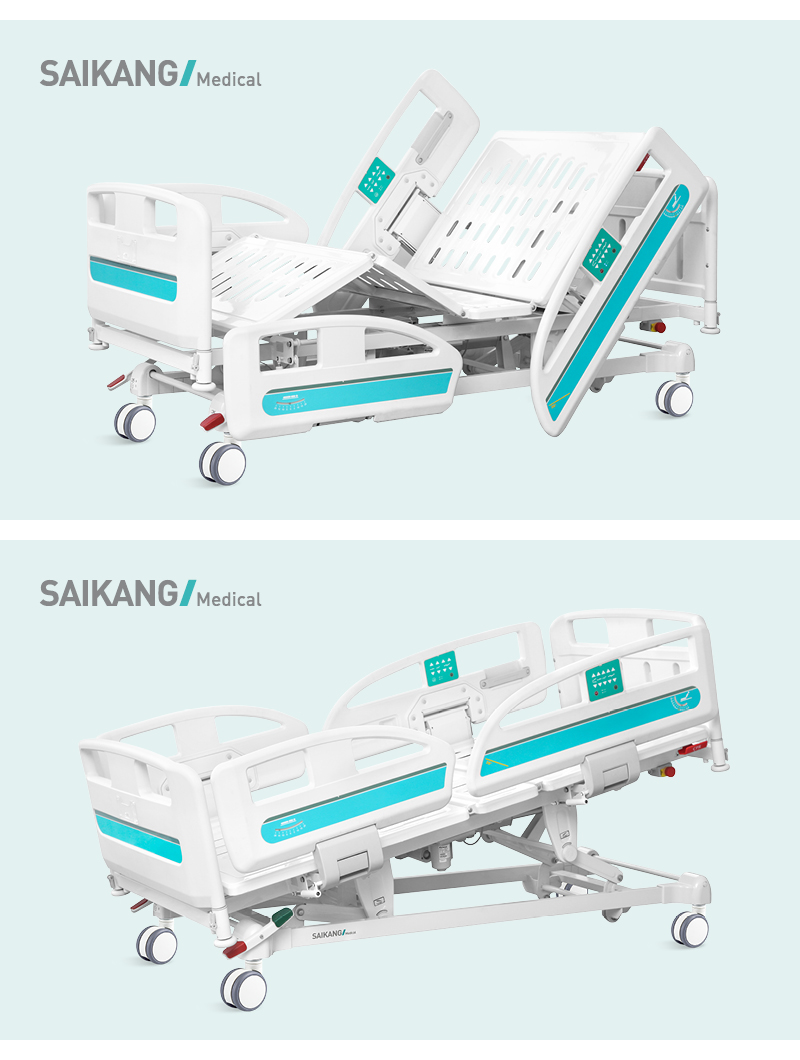

Y8t(SKD-C) Electric hospital bed

DOWNLOAD PRODUCT DATA SHEET

CONTACT FOR PRODUCT

Features
Highlights
Quality control
Warranty

Important quality control
* Super-low bed position 480mm
* Stamping forming bed platform
* PP safety guardrail with two steps unlocking system,patent design

Optional features(extra charge)
* Hand controller
* Weighing system
* Nurse control panel
* Cardiac chair position
* Bed extension 20cm
* Back-up battery
* Directional wheels function
* ABS mattress stopper
* Monkey pole
* Balkan frame
* Linen holder

Technical parameters

External size (LxWxH)	2140x1060x480-770mm
Mattress platform	1925x880mm
Safe working load	250kg
Back-rest adjustment	0-75° (±10°)
Knee-rest adjustment	0-35° (±10°)
Reverse Trendelenburg	0-12°
Trendelenburg	0-12°
Angle indicator	0-90°
Position line	30°
Voltage and frequency	100-240V · 50/60Hz

Technical configuration

Linear motor	4pcs
5'' double side castors, central locking system	4pcs
ABS oasis side rail extra height	1set
ABS oasis bed ends with safe lock	1set
Stamping forming bed platform	1pc
Plastic socket inside PP guardrail for phone or glasses	2pcs
Patent angle indicator for back-rest and trendelenburg position	4pcs
Ø70mm wall bumper wheel	4pcs
Central locking pedal	2pcs
Emergency stop button	2pcs
I V pole	1set
I V pole prevision	4pcs
Drainage hook	2pcs

Go button Use the GO button to activate the bed; protects the patient against an injury caused by any unintentional movement of the bed. Control system is automatically locked after 3 min.

	One button mobilisation position Respects easy patient mobilisation:One-button for patient mobilisation position -back plate raised, double hole design on back part guardrail, which supports patient self standing.

Lowest position indicator The lowest position indicator design allows the medical staff to observe the bed safe position during night or long distance; blue light indicate lowest bed height, otherwise it's yellow.

	Great multi-care Respects easy patient mobilisation: One-button for patient mobilisation position -back plate raised, double hole design on back part guardrail, which supports patient self standing.

Welding \| Chassis Panasonic robotic ensure, 360° full smooth wedlding. Solid bed base made of 5.0 mm stamped rotating plate.

	Steels \| Painting Baosteel from Fortune Global 500.11 Process epoxy painting, ASTM testing anti-baterial, paint thickness 0.12 mm, brightness 60°, paint can resist 50 kg impact.

Electric motor Linear motor, with UL/ROHS/ENstandard. Noise under 50 dB, with lifetime 20,000 times movement.

	Safety IEC60601 Safty Standard. One-button emergency stop switch can quickly stop all going movement.

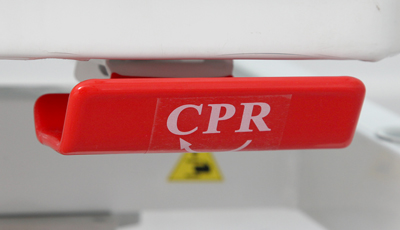

CPR CPR emergency reset handle to immediately flatten the bed back part; located on both sides of the bed. Electric CPR button is setted inside control panel,one button to make the back plate flat.

	Wheels Castors with TPR tire, no worn-out after running 30KM, united forming without bolts. Pass Dynamic test: Bearing 120kg run 30KM and pass obstacles 500time.

Brake Three position braking systerm, transporting can maintain a straight line.

	Bed Surface Stamping forming platform, smooth surface no welding scar, bearing 250 kg load. Option ABS platform and resin X-ray translucent platform.

Angle indicator Patent angle indicator,clearly show back-rest and tredelenbug position.

	Head & foot board Detachable PP head&foot board(Y19), with medical record card on foot panel, patent design, using the eccentric locking structure, one step quick removable.

Siderail 4 pcs PP siderail (T20), with patent angle indicators on each one, clearly show back-rest and tredelenburg position.

	Siderail controller Controls in the siderails: Numerous studies have shown that the built-in controller located in the head guardrail is easier to reach, allowing the patient to adjust the basic position of the bed through the controller. It is different between inside and outside, more safe and scientific.

Wall bumper wheel Φ70mm bumper wheels at the outermost periphery of the bed to protect the bed and wall, anticollision and endurable.

	IV pole Stainless Steel Column with plastic hook.

Drainage hooks Mobile plastic drainage hooks.

MEDICAL

EQUIPMENT AND FURNITURE

Since 2002

	WHY CHOOSE
	SAIKANG MEDICAL

+400 employees and +30000 m² of production facilities		18 product categories and 562 series products
	+1000 organizations in +149 countries attended

	OUR GOAL
	SATISFIED USERS

	CONSTANT
	INNOVATION


Design	Research	Manufacturing	Maintenance	Service

	SAFETY
	PACKING


Packing design	Drop test	Loading

We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 131 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.

	PRESENT IN THE MOST IMPORTANT
	INTERNATIONAL FAIRS

CMEF	German Medica	Africa Health	FIME
China	Germany	South Africa	USA
Pharmedi	TIHE	North Africa Health	Meditech
Vietnam	Uzbekistan	Egypt	Colombia
Hospital Expo	Arab Health	Medic West Africa	ExpoMed
Indonesia	United Arab Emirates	Nigeria	Mexico
Medical Fair Asia	Medical Expo	Medic East Africa	Hospitalar
Singapore	Morocco	Kenya	Brazil

	WE EXPORT HEALTH
	WORLDWIDE

Warranty

* We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods.

* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.

* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.

FAQ

What quality requirements does your company meet?

* We have over 20 certifications, as ISO-9001/13485/14001/18001, European CE, North American FDA, Russian Federal Registration and Brazilian Health Regulatory Agency.

* We also meet the 93/42/EEC and IEC60601 safety standards.

* In addition to having 126 patents registered, we are constantly developing and implementing new standards for product quality and service efficiency.

What warranty do your products have?

* We provide a standard 1 year warranty, optional to be increased.

* 1% free parts of the total quantity will be provided together with goods.

* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.

* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.

What is your delivery time?

* Our standard delivery time is 28 days.

What payment options do you offer?

* We are flexible in terms of payment. We can do LC, TT, DP, even credit, after auditing the customer.

Do you offer OEM service?

* Yes, we have a qualified R&D team to carry out customized projects. You just need to provide us with your own specifications.

Do you have different motor options?

* Yes, we have different brands of motors, as Linak, Timotion, Dewert or Jiechang.

Is the color on headboard/footboard and ABS side rail optional?

* Yes, we can provide the color according to customers' requirements, based on wholesale purchases.

Can I see your products personally?

* You are welcome to our 2,000 m2 of showrooms in our factory in China (150 km from Shanghai).

* In addition, we annually attend numerous international exhibitions where we present our products, such as Arab Health (United Arab Emirates), North Africa Health (Egypt), CMEF (Shanghai), German Medica (Germany), Medic West Africa (Nigeria), Medic East Africa (Kenya), Pharmedi (Vietnam), Hospitalar (Brazil), Medical Expo (Morocco), etc.
