D8d(SKD-C) Electric Hospital bed

  • Features
  • Highlights
  • Quality control
  • Warranty

Important quality control
* Grace care series
* 5 functions electric
* Big LCD screen nurse control panel

Optional features(extra charge)
* Weighing system with LCD screen
* Bed extension 200mm
* Back up battery
* Cardiac position
* ABS bed surface
* x-ray bed surface
* Monkey pole
* Balkan traction frame
* Directional wheels function

Technical parameters
External L*W*H 2280x1090x(435-725)mm
Knee-rest adjustment 0-35°(±10°)
Mattress platform 1925x900mm
Back-rest adjustment 0-75°(±10°)
Safe working load 250kg
Reverse trendelenburg 0-12°
Trendelenburg 0-12°
Angle indicator 0-90°

Technical configuration
Linear motor 4pcs
5" double side secure®castors, central locking 4pcs
ABS grace side rail with integrated control panel 1set
ABS grace bed ends with Integrated LCD control panel 1set
Φ85mm wall bumper wheel 4pcs

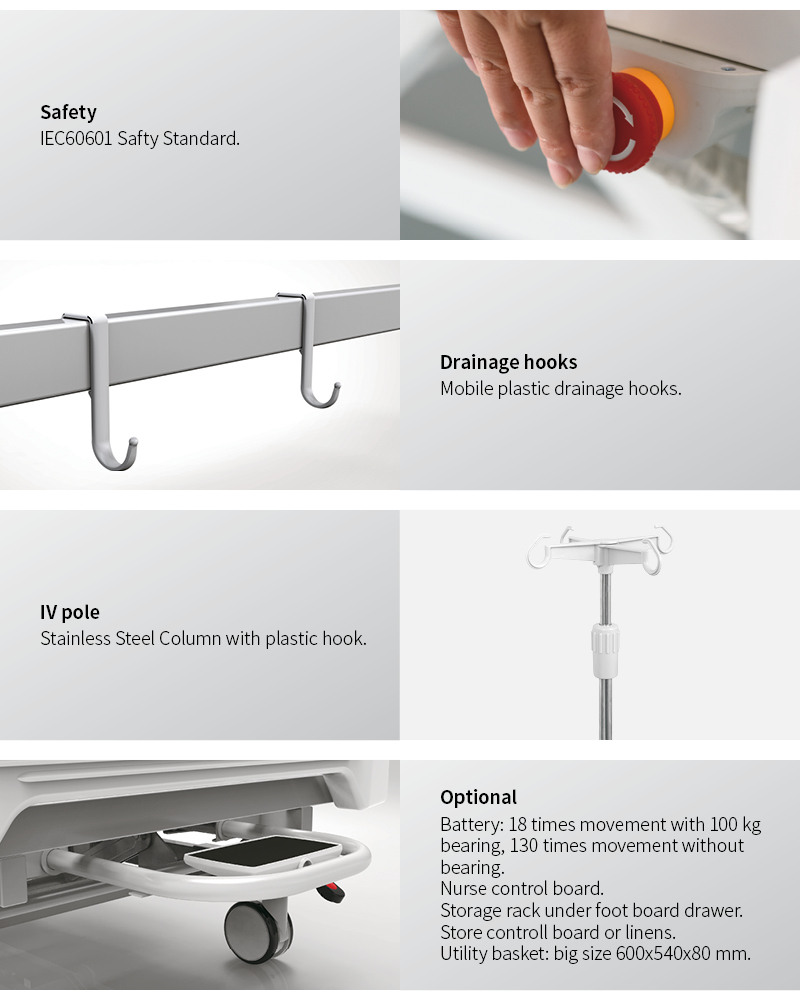

Trapeze socket 2pcs
IV pole 1set
IV pole prevision 4pcs
Drainage hook 2pcs
Central locking pedal 2pcs
