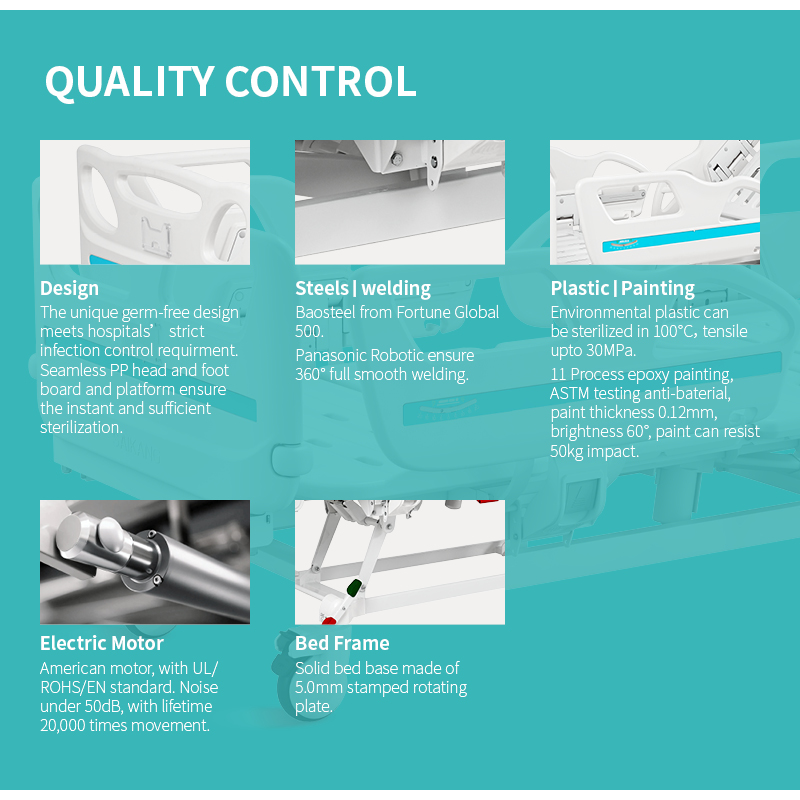

  • Quality control
  • Warranty

Technical parameters
External size(LxW): 2105x980mm
Mattress platform: 1920x820mm
Safe working load: 250kg
Height adjustment: 400-710mm
Back-rest adjustment 0-84°(±10°)
Knee-rest adjustment: 0-47°(±10°)
Angle indicator: 0-90°
Positionline: 30°
Voltage and frequency: 100-240V·50/60 H
Plug as required(hospital grade)


Technical configuration
Linear motor 3pcs
Hand controller 1pc
6" Double side castors,central locking system 4pcs
PP side rail extra height 1set
PP bed ends with safe lock with Φ60 bumper wheels 1set
Patent angle indicator for back-rest and trendelenburg position  4pcs
IV pole 2 hooks 1set
IV pole prevision 4pcs
Drainage hook 2pcs
PP mattress retrainer 2pcs
Monkey pole provision 2pcs
Three-step brake
Manual CPR
Electric CPR
