SKB041-7 Patient Transportation Trolley(Backrest X-ray)

  • Features
  • Highlights
  • Quality control
  • Warranty

Technical parameters
Overall size 2200x770±10mm
Height adjustment range 550-860±10mm
Back-rest 0-85°±5°
Leg-rest 0-50°±5°
Trendelenburg 0-15°±2°
Reversed Trendelenburg 0-15°±2°
Static load 250kg
Dynamic load 135kg


Technical configuration
80mm PU Mattress 1pc
8"Castors,Central Locking 4pc
Hydraulic Pumps 2pc
IV Pole 1set
Back Angle Monitor 2pc
Integrated Wall Bunper Wheels 4pc
Half X-ray with Film Clip 1set
Patient Restraints 2pc
PP Bottom Cover 1pc
5-speed Foldable Guardrail 1set
Foot Pedals 1set
5th Directional Wheel 1pc

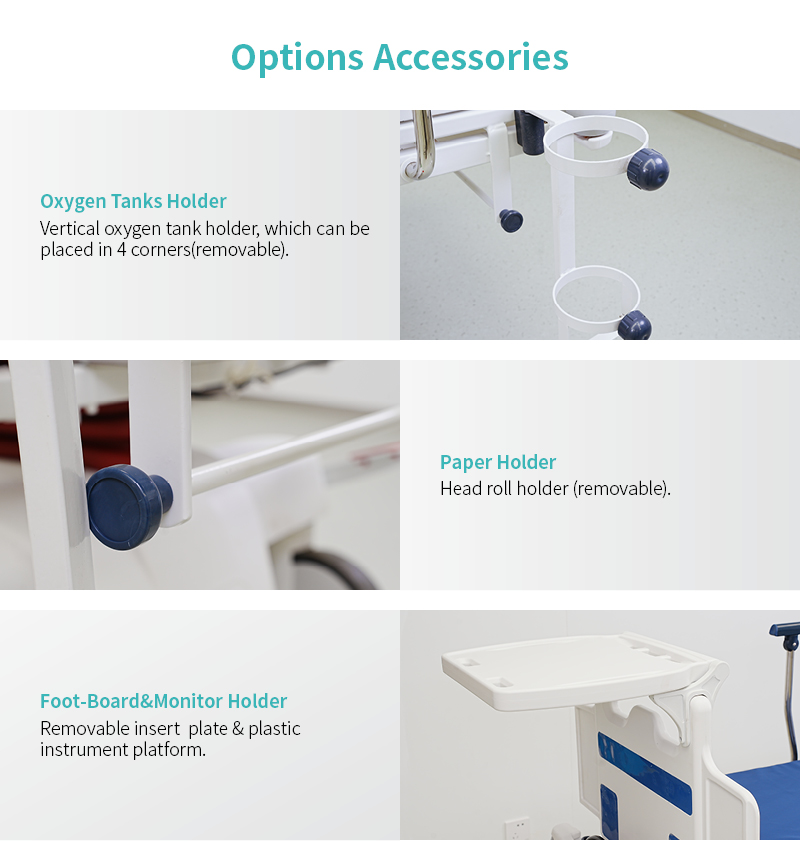

Optional
*Oxygen Tanks Holder
*Paper Holder
*Foot-Board&Monitor Holder
*Monitor Holder
*Debris Basket
*Weighting System
*Pluggable Mobile lV pole
