SK-LLD0503C LED operation lamp

DOWNLOAD PRODUCT DATA SHEET

CONTACT FOR PRODUCT

Features
Highlights
Quality control
Warranty

Product introduction

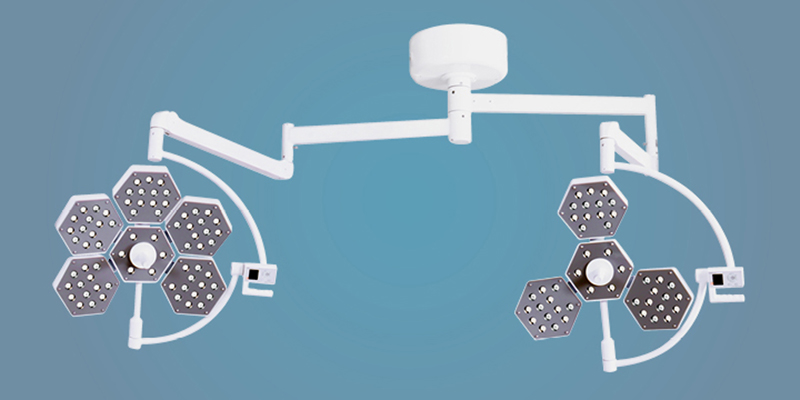

The LED surgical shadowless lamp is composed of multiple lamp bulbs. The bulb has a longer life than the traditional shadowless lamp. It is round or petal-shaped. It is fixed on the balance arm suspension system. It is stable in positioning and can be moved vertically or cyclically. It can meet different heights during surgery. The petal-shaped surgical shadowless lamp is also a kind of LED. It is introduced separately because the lamp cap is petal-shaped and has a special shape.

Technical parameters

Diameter of lighthead (mm)	650/650
Illumination at 1m (Lux)	180000/160000
Brightness control range	0-100% stepless adjustment
Color temperature (Kelvin)	4000-6000
Color rendering index (CRI)	85-95
Temperature rise (surgeon head)(℃)	≤1
Temperature rise (surgical field)(℃)	≤1
Total irradiance Ee (W/m2)	≤573+419
Radiant power Ee/Ec (mW/m2lux)	≤4
Effective focusing depth (cm)	60-130
Lighting spot size (cm)	16-28
L1+L2 depth of illumination (cm)	≥130
Bulb type	LED
Bulb brand	OSRAM
Bulb quantity	71
Bulb power	71
Average bulb life (hours)	≥80000

Other products

SK-LLD0503C	SK-LLD0505C
SK-LLD03C	SK-LLD05C
SK-LLY03C	SK-LLY05C

Material technology The coating is sprayed with world-leading Akzo Nobel powder coating and anti-glare treatment, which meets the demanding requirements of surgical lighting. The design of the lamp holder focuses on reducing the turbulence. The streamlined lampshade of the whole lamp arm is carefully designed according to the principle of aerodynamics, which is fully in line with The standard of a modern new operating room.

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Bulb The bulbs are imported from Germany OSRAM brand, using a special optical system, 360 ° uniformly illuminated on the observed object, no shadows, true reproduction of the organization color, and achieve constant color temperature under any light intensity conditions. The material is hard and no mercury pollution. Also, the emitted light does not contain infrared and ultraviolet radiation pollution.

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Color temperature&Illumination Using a new type of LED cold light source, the illuminance can reach 180,000 Lux, which can realize stepless dimming and nonmulti-speed adjustment; the color temperature is in the range of 4000K-6000K, and the stepless dimming is non-multi-step adjustment. While meeting the high illuminance, adjust the lighting parameters according to the needs of different surgeons, so that the surgeon's perception of light is soft and no glint.

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Color rendering index The color rendering index reaches 95, which truly reflects the color of human tissues. It is suitable for various surgical scenes and greatly reduces the visual fatigue of medical staff due to long-term operations.

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Temperature rise (surgical field) LED cold light source has no infrared radiation, coupled with our nano-coated radiator, created our excellent heat dissipation effect. It solves the problem of the doctor's head temperature being too high during the operation, and creates a more comfortable operation environment for the doctor; it also effectively avoids the loss of water and infection of the surgical wound, which is conducive to the rapid recovery of the patient's wound after the operation.

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Operating handle The detachable disinfection handle is made of high-strength ABS, which can be disinfected and sterilized at a high temperature above 135°, ensuring the durability and reliability of the handle.

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Other functions It contains three modes of beauty, endoscopy, and deep cavity, which can be switched by one button.

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
