- Features
- Highlights
- Quality control
- Warranty
Technical parameters
Standard configuration

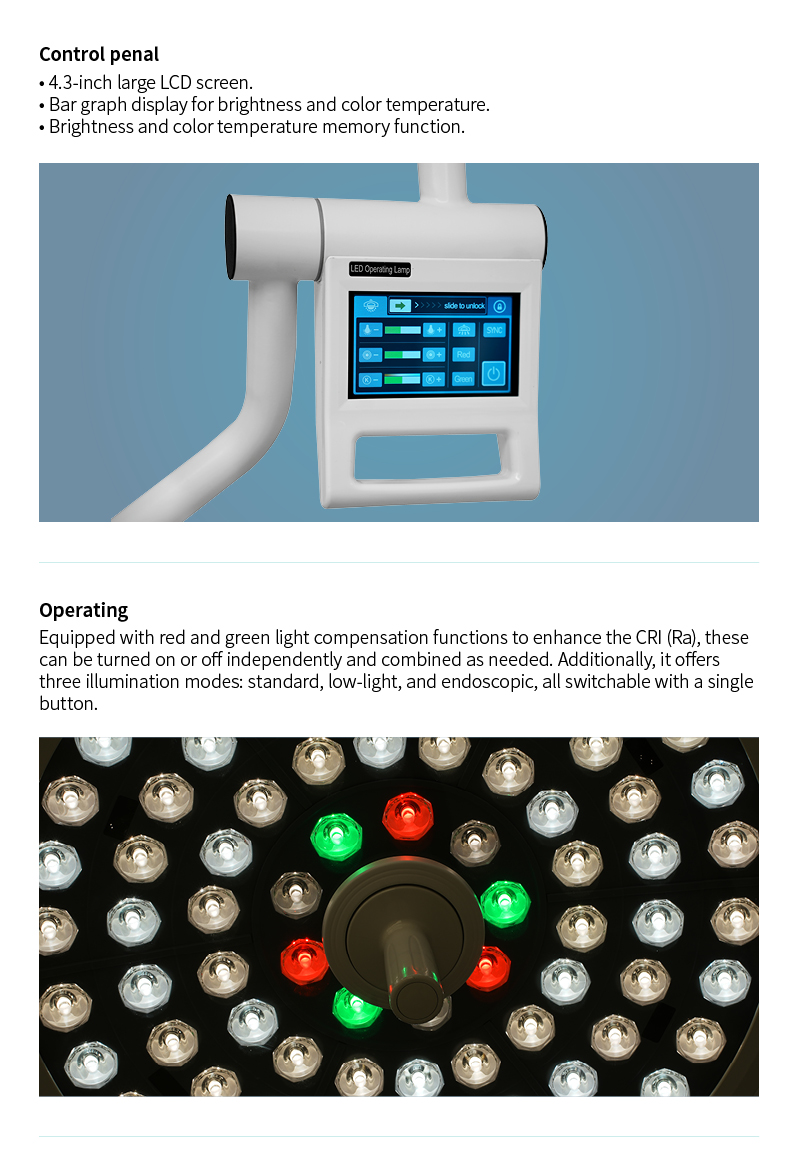

*4.3-inch full-screen touch controller
*Manual focusing module
*Red light compensation
*Green light compensation
*Standard,endoscopic,low-light illumination modes
Options
*Motorized focusing module
*Shadow compensation
*Mutually control system
*Gesture detection
*Backup battery
*Remote controller
*Wall control system
*Camera system

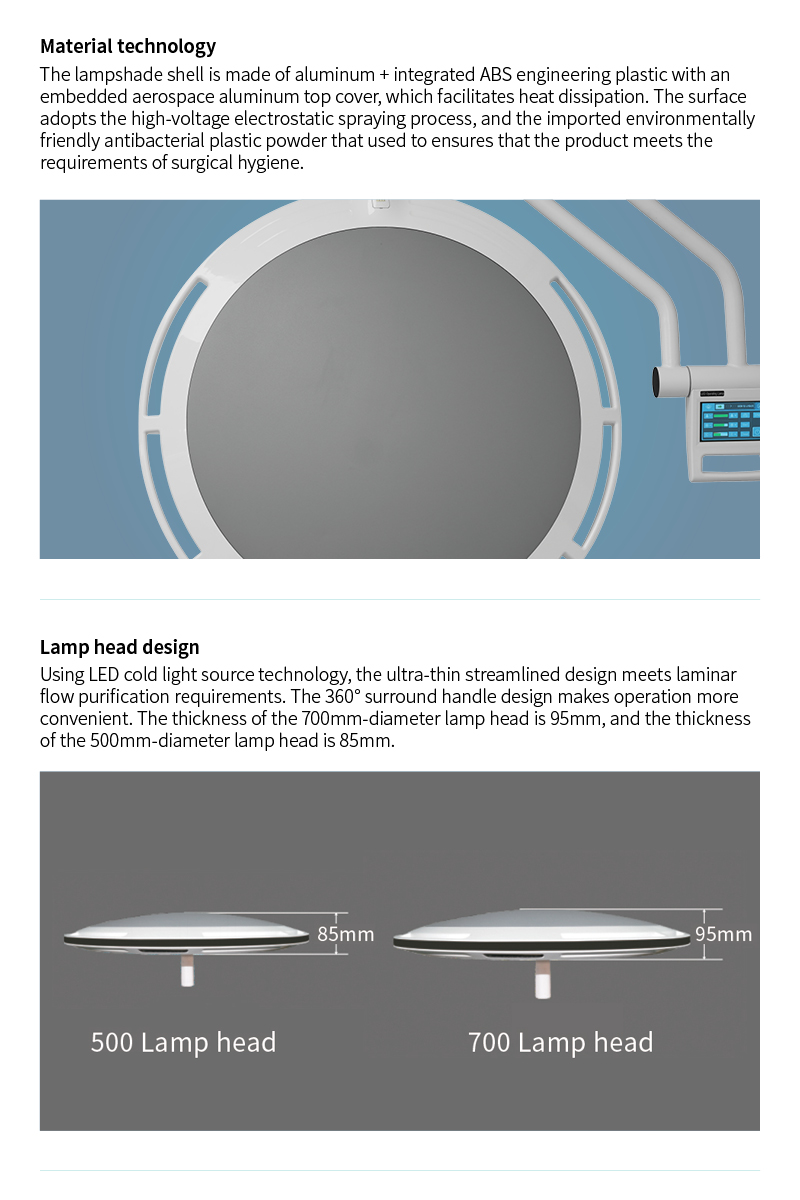

| Lamp head diameter(mm): | 700/530±10 |
| Illuminance at1 meter(Lux): | 40,000-160,000 |
| Brightness adjustment: | 9 levels |
| Color temperature(Kelvin): | 4000-5000 |
| Color rendering index(CRI): | ≥95 |
| Spot diameter at1 meter(mm): | 180-280 |
| Illumination depth(cm): | ≥120 |
| Surge in surgeon's head temperature(℃): | ≤1 |
| Surge in surgical field temperature(℃): | ≤0.5 |
| Light source type: | LED |
| LED brand: | OSRAM |
| Number of LEDs: | 81+51 |
| LED power(W): | Rated 3W,actual use 1W |
| LED lifespan(hours): | 50,000 |
| Brightness adjustment: | 4.3-inch controller 9 levels adjustment |
| Operating voltage: | AC100V-240V,50HZ/60HZ |
| Installation: | 2800-3200mm(optional 2.5m floor height customized edition) |
Standard configuration
*4.3-inch full-screen touch controller
*Manual focusing module
*Red light compensation
*Green light compensation
*Standard,endoscopic,low-light illumination modes
Options
*Motorized focusing module
*Shadow compensation
*Mutually control system
*Gesture detection
*Backup battery
*Remote controller
*Wall control system
*Camera system
